Industrial Plug IP67 T Shape M20 Waterproof Electric Push Lock Connector for Outdoor LED Light
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Xiangqian |
| Certificação: | UL |
| Número do modelo: | Tee M20 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100pcs |
|---|
|
Informação detalhada |
|||
| Cor: | Preto | Aplicação do conector: | Diodo emissor de luz exterior, luz de rua |
|---|---|---|---|
| Nível de proteção: | IP67 | Classificação atual: | 15a |
| Gênero do conector: | Masculino e feminino | Número de contatos: | 2-5 |
| Tensão nominal: | 250V | Certificações: | UL, CE, CCC, TUV |
| Classificação de tensão: | 250V | Resistência ao isolamento: | ≥1000mΩ |
| Amostra: | Livre | ||
Descrição de produto

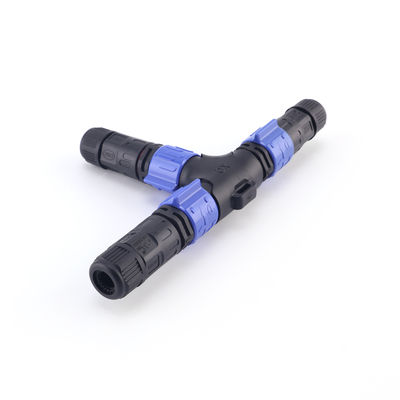

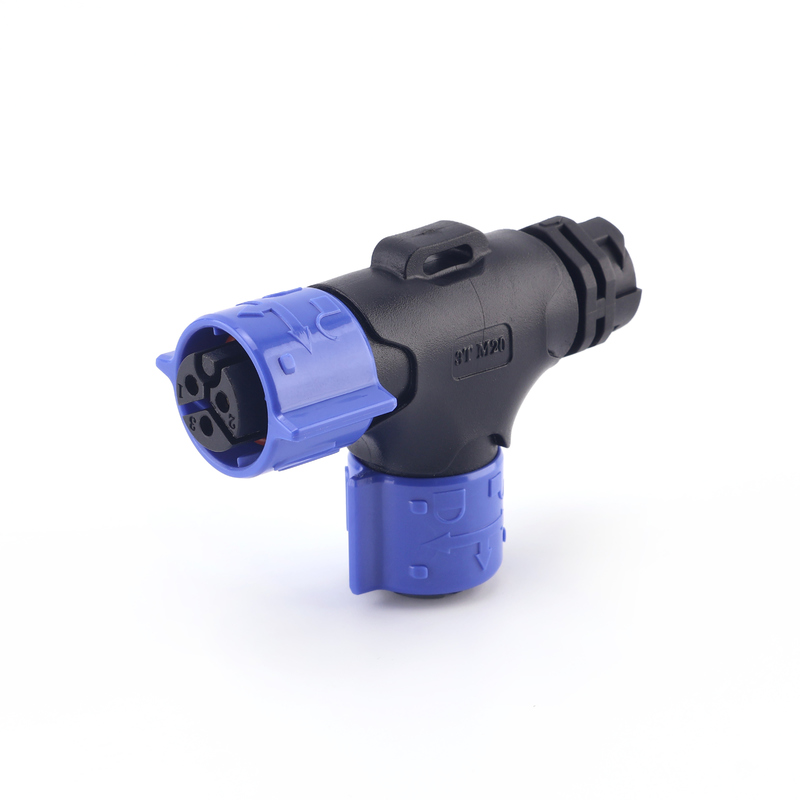

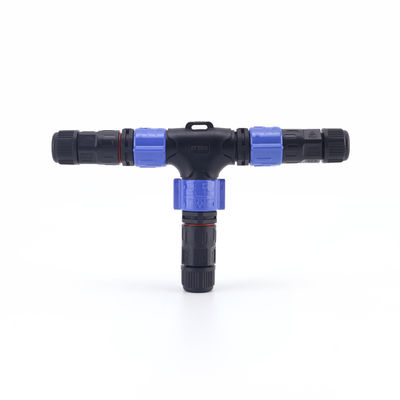

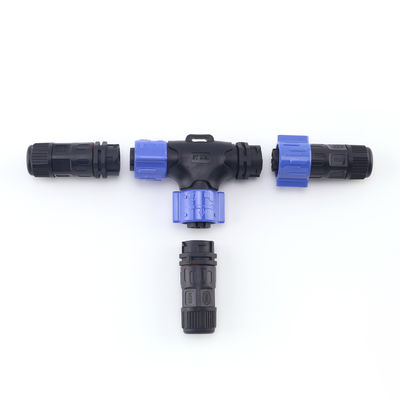

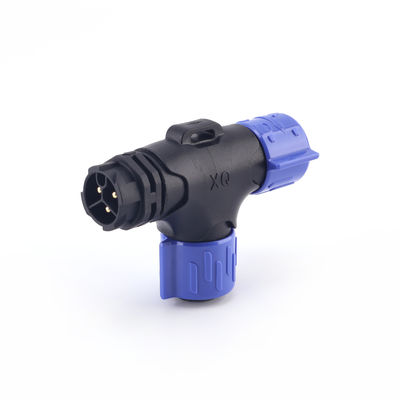

Industrial Plug IP67 T Shape M20 Waterproof Electric Push Lock Connector for Outdoor LED Light
The T-type three-way self-locking M20 waterproof connector features a compact, weather-resistant design with an IP67 protection rating, ensuring long-term stable operation in harsh outdoor environments such as rain and dust. The self-locking structure simplifies installation and enhances reliability, allowing quick and secure connections without the need for additional tools.
This product is specifically designed for outdoor power distribution and lighting systems, widely used in scenarios such as LED outdoor lighting, landscape lamps, livestock farming equipment, security monitoring, industrial power distribution, and new energy devices. The T-shaped structure enables "one-in-two-out" or "one-in-three-out" power distribution, significantly reducing wiring complexity and improving construction and maintenance efficiency.
Parameters:
| Company Name | Xiangqian |
| Connector Type | Push Lock Assembly IP67 M20 Waterproof Power Connectors |
| Current Rated | 15A |
| Voltage Rated | 250V |
| Connector Cores | 3 cores(Customized) |
| Contact Resistance | ≤10mΩ |
| Cable Diameter | Ø5.0–11.0 mm |
| Material | PA66(UL94 V-0 |
| Operating Temperatures | -40℃ ～ +105℃ |
| Highlight | Tee 3 Way LED Waterproof Connector, Industrial M20 IP67 Waterproof Plug |
Performance Test Report (Factory Test)
| Test Project | Test Conditions | Result |
| rated current | Test according to different numbers of cores (2-5 cores) | 10A ~ 20A |
| rated voltage | AC/DC testing | 250V ~ 450V |
| Operating Temperature | high-low temperature cycles test | -40℃ ~ +105℃ |
| Waterproof performance (IP67/IP68) | After docking and locking, 1 m water depth / 30 min | No water seepage, no degradation of electrical performance |
| Plug and unplug life (spot check) | Retest electrical performance after 200 cycles | All indicators remain qualified |
| Salt spray test (optional) | 5% NaCl solution, 48 h | The terminals are free of red rust and function normally. |
| Contact resistance | Milliohm meter measures each needle | ≤ 10 mΩ |
| Insulation resistance | 100V DC, pin-to-pin / pin-to-shell | ≥ 100 MΩ |
Product features and advantages
- High protection level: IP67 certification, waterproof and dustproof, suitable for outdoor and humid environments.
- High quality material: Nylon PA66 shell, impact resistant, flame-retardant, UV resistant, and not easily aged.
- Self locking quick plug design: No tools required, quick insertion and removal, preventing accidental detachment.
- Safe and stable: high current carrying capacity, low contact resistance, ensuring stable power transmission.
- Multi scenario adaptation: supports LED power supply, outdoor lighting fixtures, monitoring equipment, agricultural/livestock equipment, etc.
- Easy to expand: The T-shaped structure allows for flexible branching and wiring, reducing construction workload.
After-Sales Service
- Warranty commitment: All waterproof connectors come with a 12-month warranty. In case of any quality issues under normal usage conditions, they will be replaced or repaired free of charge.
- Technical support: Provide selection guidance, installation training, and remote technical support to ensure customers get started quickly.
- Fast delivery: Regular models have sufficient stock and support OEM/ODM customization needs.
- After sales response: Respond to customer issues within 24 hours and provide timely solutions.
FAQ
1. What is the waterproof rating of this M20 threaded T-type waterproof connector?
With an IP68 rating, it can operate reliably in harsh outdoor environments such as rain, water spray, and humidity.
2. What applications is it suitable for?
Primarily used in outdoor LED lighting, landscape lighting, streetlights, billboards, electrical control systems, and other applications requiring T-type wiring.
3. What is the maximum current/voltage supported?
Typically, the rated current is 15A and the rated voltage is 250V AC (this varies depending on the number of pins; higher current options are available).
4. Can the number of pins be customized?
Yes, the standard range is 2-5 pins, but special requirements can be met.
5. Is it easy to install?
It features a threaded fastening structure with internal buckles and a sealing ring for dual protection, ensuring fast, secure, and reliable connection.
