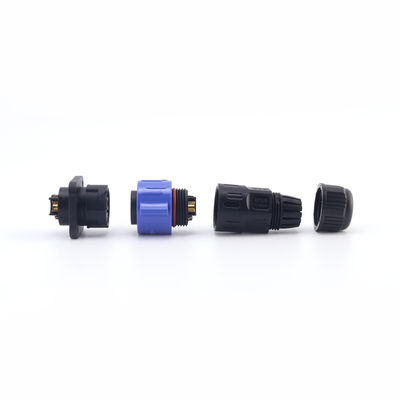

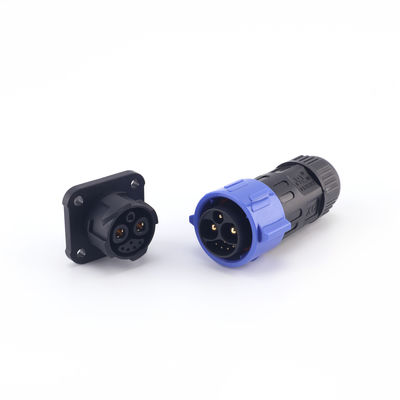

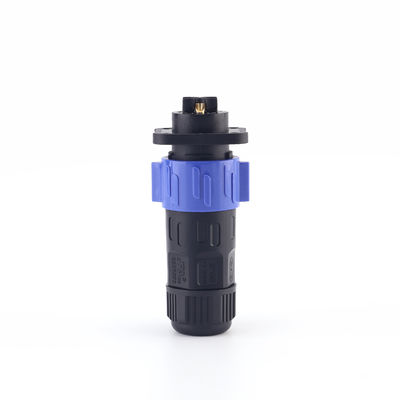

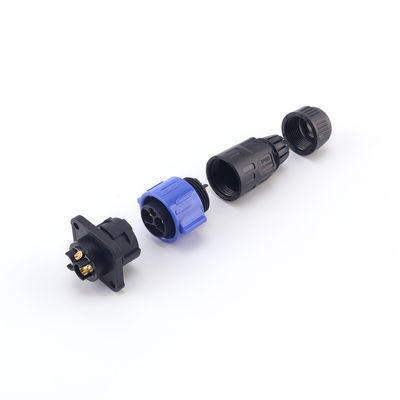

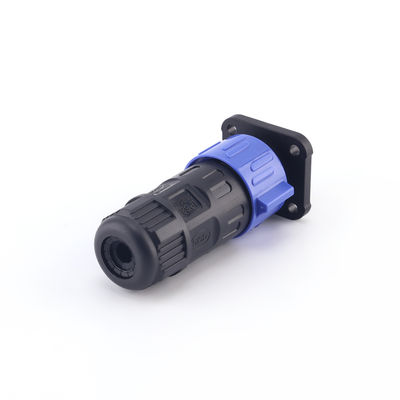

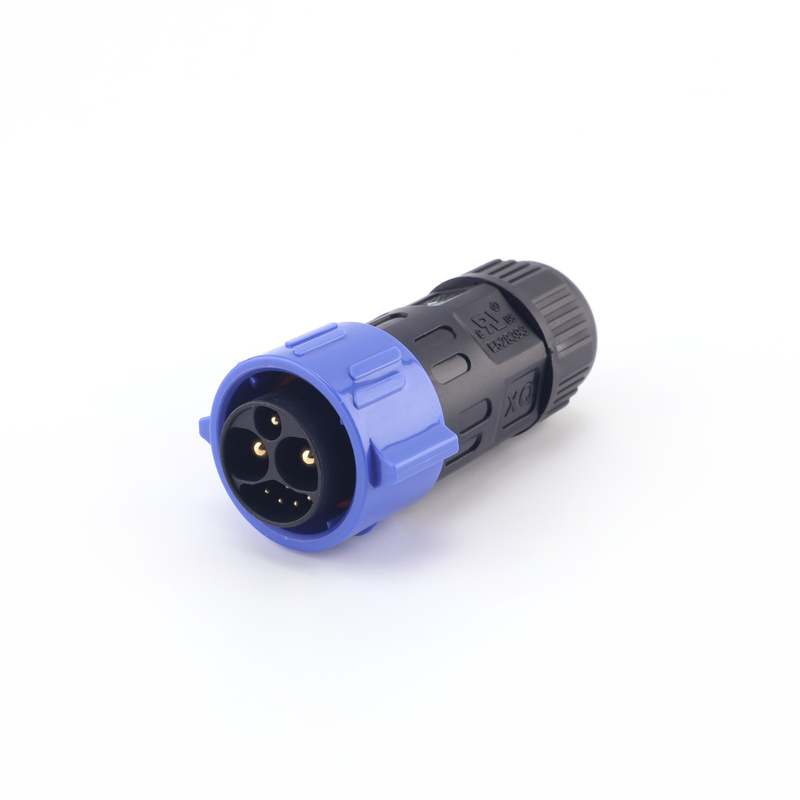

Factory Price Outdoor LED Light IP67 Male Panel Mount M25 2+1+5 Pin Plug Nylon Waterproof Electric Connectors
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | XIangqian |
| Certificação: | UL |
| Número do modelo: | Montagem em painel M25 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100pcs |
|---|
|
Informação detalhada |
|||
| Marca: | Xiangqian | Material: | Náilon, PA66 |
|---|---|---|---|
| nome do conector: | Conector exterior impermeável de IP67 M25 | Alfinete: | 8(2+1+5) Núcleos |
| Classificação atual: | 30a | Classificação de tensão: | 600V |
| Amostras: | Livre | Tempo de entrega: | 5 dias |
Descrição de produto
Factory Price Outdoor LED Light IP67 Male Panel Mount M25 2+1+5 Pin Plug Nylon Waterproof Electric Connectors
The self-locking M25 female panel 2+1+5 PIN waterproof connector is an outdoor connector designed specifically for high-power power and signal composite transmission systems.
Its housing is made of high-strength nylon (PA66), offering excellent high-temperature resistance, impact resistance, flame retardancy, and UV protection. The panel-mount design ensures stable installation and is suitable for mounting on device ports or power supply panel panels.
The unique 2+1+5 PIN design (two main power pins + one ground pin + five signal pins) supports synchronous transmission of power and control signals. Its compact structure and clear wiring significantly improve device integration and system stability.
The self-locking connection structure ensures easy and reliable insertion and removal, strong vibration resistance, and prevents accidental loosening. With an IP67 protection rating, it maintains excellent sealing performance even in rain, dust, and humid environments.
Product Features and Advantages:
Self-locking structure: Quick and secure insertion/removal, preventing loosening.
Multi-core design: Integrated power and signal transmission, simplifying wiring.
High protection rating: IP67 dustproof and waterproof, suitable for various outdoor environments.
Nylon shell: Lightweight and corrosion-resistant, with flame-retardant and UV-resistant properties.
Panel mounting: Securely fixed, facilitating device integration.
Parameters:
| Cable OD | Ø6.0-14.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Parameter | Common typical values or ranges | Notes |
| Voltage Rating | 250 V / 400 V / 450 V | Some models support high voltage levels (such as solar or power systems) |
| Current Rating | Main power pin test (2 pins) | 30A ~ 35A |
| Contact Resistance | ≤5 mΩ | Some outdoor connector designs require ≤ 5 mΩ to reduce heat and voltage drop |
| Signal pin test | Low power pin test (5 pins) | 3A ~ 5A |
| Dielectric Withstanding Voltage | Several thousand volts (e.g. 1.5 kV / 60 s, etc.) | Responding to surges or transient overvoltages |
| Insulation Resistance | ≥10 MΩ / 500 VDC | Prevent leakage and insulation breakdown |
| Operating Temperature | –40°C to +105°C (or higher) | For outdoor environments with temperature changes |
| Ingress Protection | IP68 | Indicates that it can be immersed in water for a long time under specified conditions and prevent dust from entering |
| Media durability / humidity / salt spray test | Often pass salt spray test / high humidity aging test | For long-term outdoor reliability |
After-Sales Service
1. Quality Assurance
All products undergo continuity testing, withstand voltage testing, insulation testing, and waterproofing inspection before leaving the factory.
A 12-month quality guarantee is provided. During the warranty period, products with quality issues will be replaced or repaired free of charge.
2. Technical Support
Product selection guidance, installation instructions, and application technical support are provided.
Customization services are available according to customer needs (core count, wire type, length, logo, etc.).
3. Samples and Customization Services
Free samples are available (customer bears shipping costs).
OEM/ODM services are available for bulk orders based on customer system designs.
4. Delivery and Logistics
The delivery time for standard products is 5-10 working days. Customized products will be confirmed separately based on quantity.
Customer-specified logistics methods are supported to ensure safe and timely delivery.
5. Customer Service
After-sales tracking and usage guidance are provided, and customer feedback is responded to promptly.
We regularly follow up with customers to continuously improve product performance and service quality.
